Especificações:
| Reted line pull | 12000Lbs(5443kgs)Single Line |

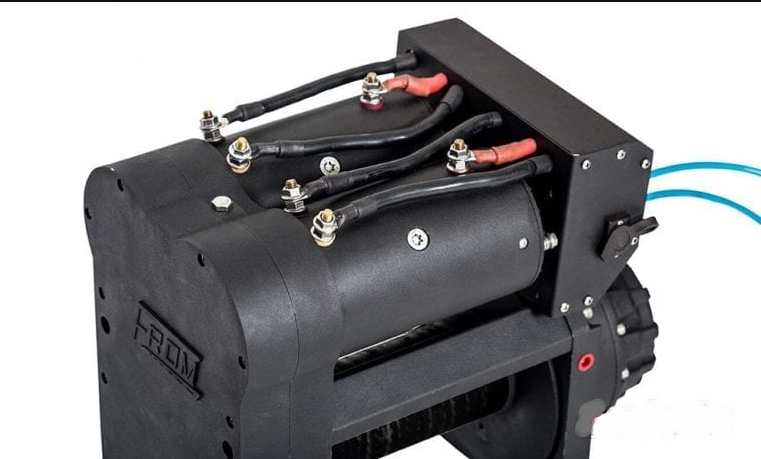

| Motor | Two Series Wound Motors with single
7hp/3.2kw (Output Power), 12V DC |
| Gear Train | 3 Stage Planetary Gear & Transmission Gear |
| Gear ratio | 138:1 |

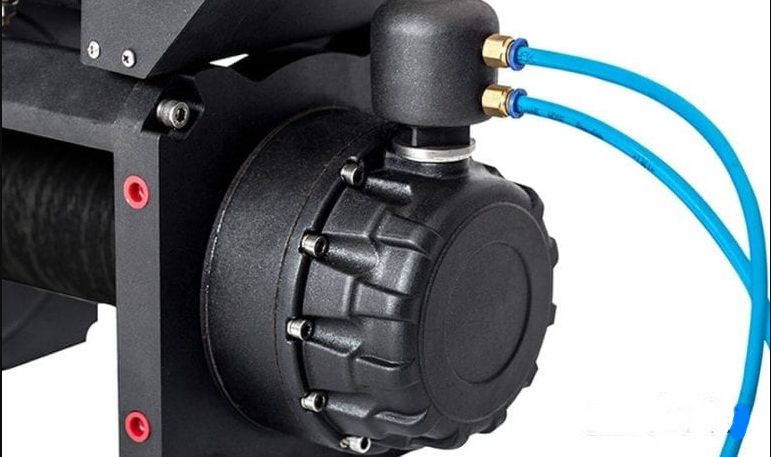

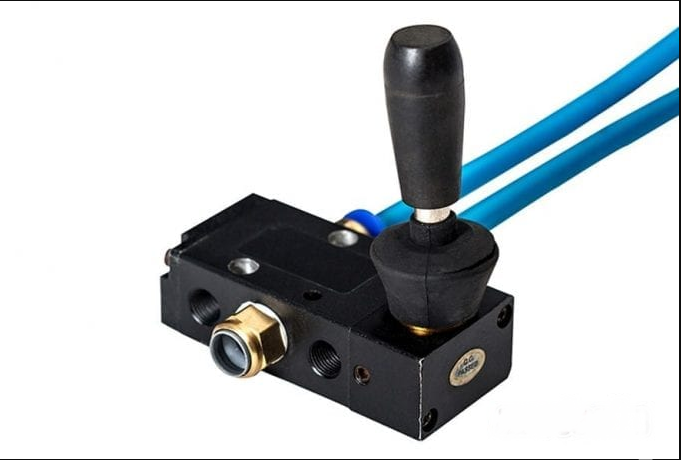

| Clutch | Air clutch |
| Braking action | Automatic in the drum |
| Fairlead | Aluminum hawse |
| Rope | 7/16” x 164’(11mm×50m) Synthetic |
| Drum Size | 2.5’’ x 11.8’’ (64mm x 299mm) |

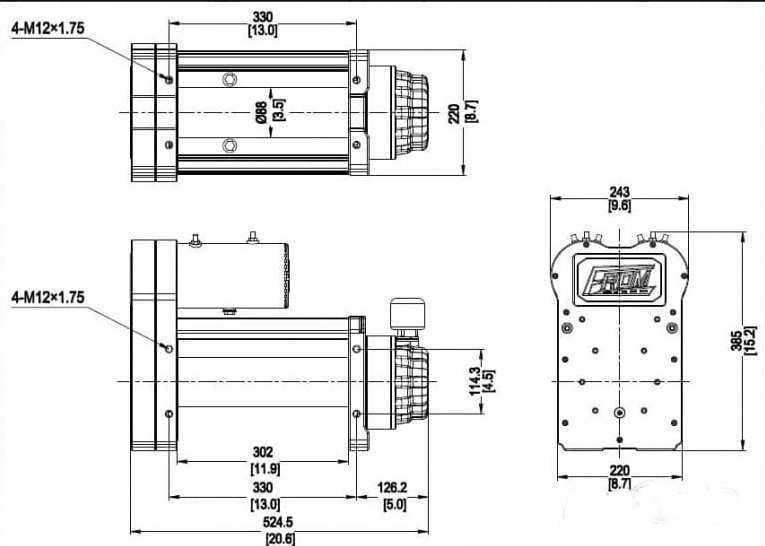

| Dimensions | 21.1’’ x 9.6’’ x 16.5’’ (537mm x 243mm x420mm) |
| Mounting Bolt Pttern | 13’’ x 4.5’’ (330mm x 114.3mm )
13’’ x 4.6’’ (330mm x 171.2mm) |
| Battery Cable | 86.6″ (2.2m) |
| N.W | 152lbs (69kgs) |
| Packing | 590 mm×300 mm×490 mm |
